Warning Signs of Fraying Aircraft Lift Cables

Your garage door is the heaviest moving object in your home, relying on a complex system of springs, drums, and heavy-duty steel cables to lift hundreds of pounds seamlessly. Often referred to in the industry as aircraft lift cables due to their high-tensile strength and braided steel construction, these lines are under an immense amount of tension.

When these cables fail, the results are catastrophic—ranging from a violently jammed door to severe property damage or personal injury. Fortunately, cables rarely snap without warning. Here are the critical warning signs you need to look out for to prevent a complete system breakdown.

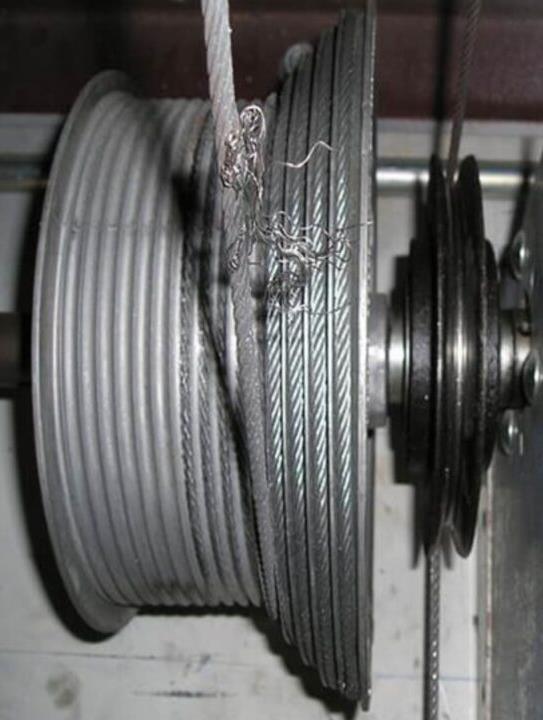

1. The "Hairy" Cable (Visible Fraying)

Aircraft cables are made of multiple strands of galvanized or stainless steel wire wrapped tightly together. Over time, the friction of rolling over the drums and scraping against track brackets causes individual wires to break. If your cables look "fuzzy" or "hairy," individual strands have snapped. This significantly compromises the load-bearing capacity of the cable.

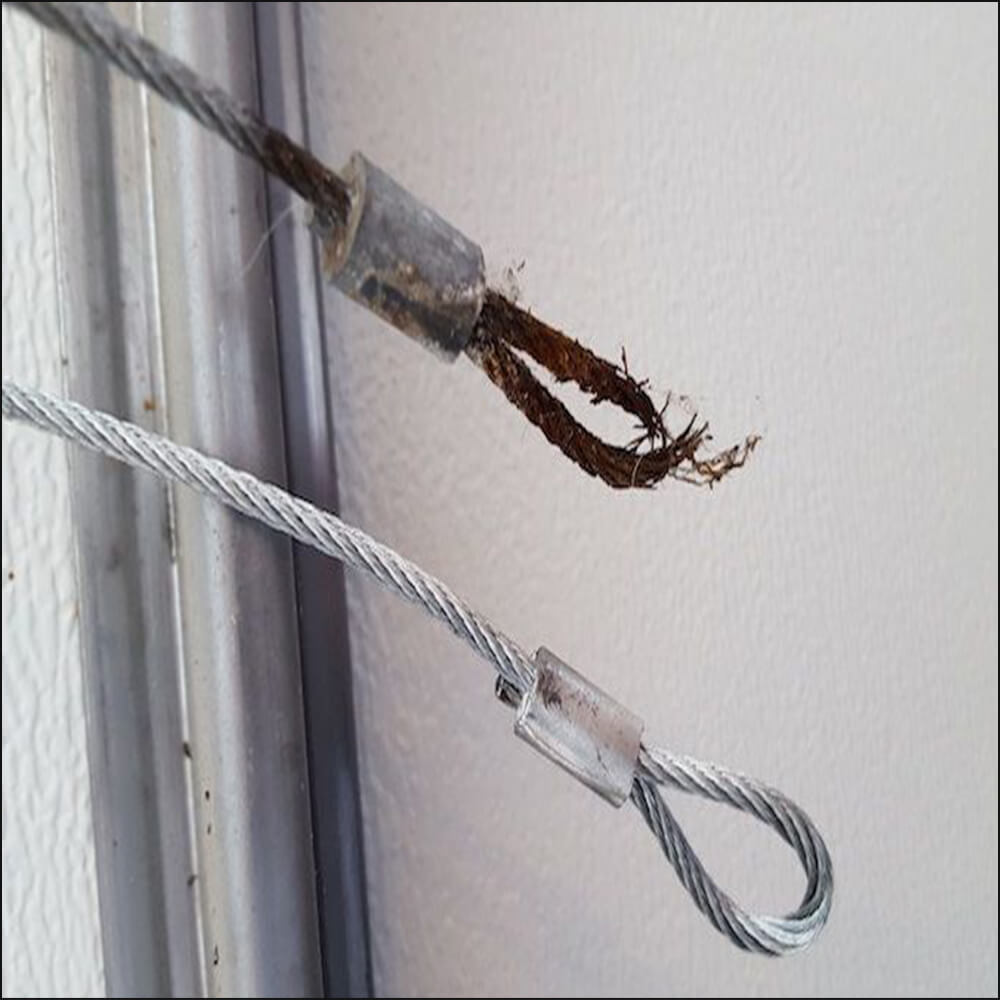

2. Corrosion and Rust Stains

Because garage door cables operate close to the bottom brackets—where water, road salt, and humidity accumulate—they are highly susceptible to rust. Rust eats away at the steel wire, making it brittle. Look for a reddish-brown discoloration, particularly near the bottom loop attached to the door fixture.

3. Kinks, Bends, or Flattened Sections

A healthy aircraft cable should be perfectly round and flexible. If a cable jumps off its drum or gets caught in the track, it can develop a permanent kink or flat spot. Once a cable is kinked, the internal stress distribution changes, creating a major weak point that will quickly give way under tension.

4. The Door is Crooked or Uneven

If your garage door looks lopsided when opening or closing, or if there is a noticeable gap at the bottom on one side, your cables are likely unevenly stretched or fraying at different rates. When one cable begins to fail and stretch, the other side is forced to shoulder the extra weight, accelerating total system failure.

---

Recommended Gear for Safe Maintenance

If you've spotted any of these warning signs, it's time for an intervention. Here are the top-rated tools and replacement parts the Garage Door Mafia trusts to get the job done right.
